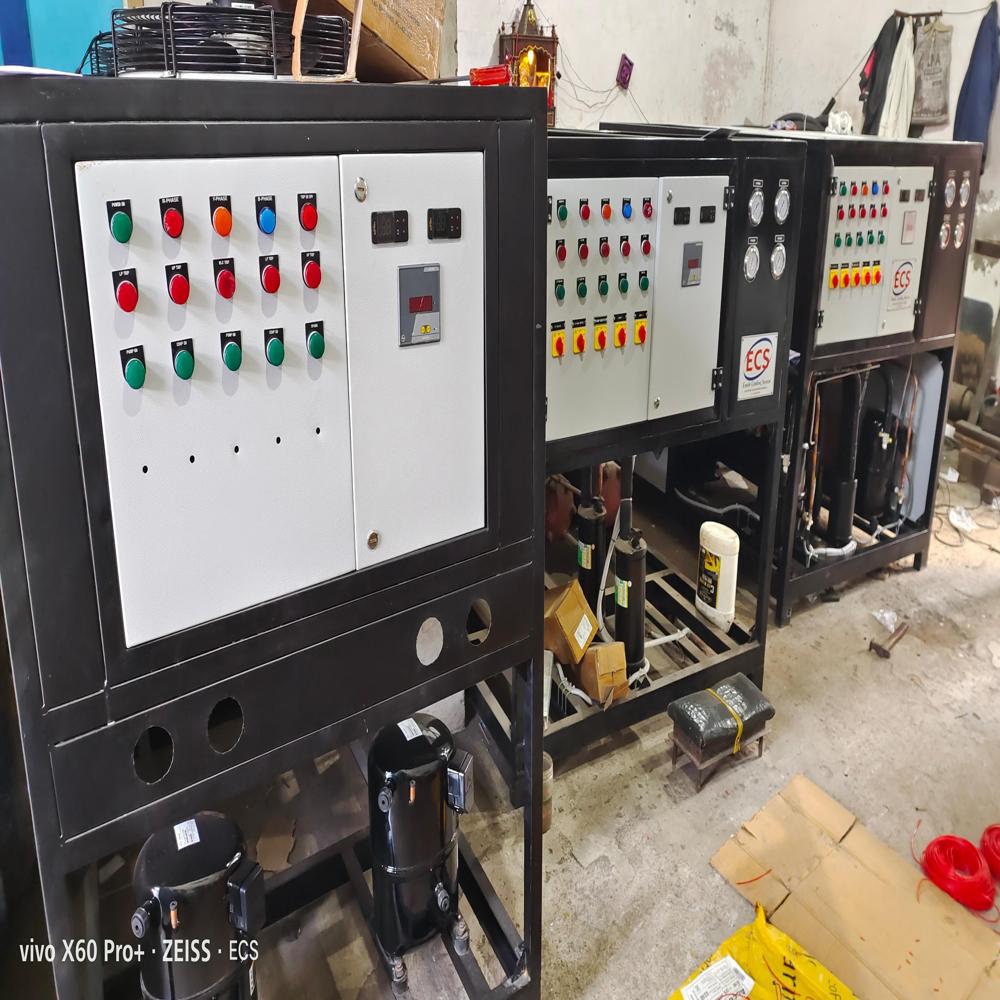

3Tr Air Cooled chiller
120000.0 INR/Piece
Product Details:
- Material Other
- Motor 1 HP Water Pump Motor
- Air Flow 2800 CFM approx ft3/min (CFM)
- Application Industrial, Commercial, Process Cooling
- Refrigerating Capacity 3 Ton (10.5 kW)
- Condition New
- Type Air Cooled Chiller
- Click to View more
X
3Tr Air Cooled chiller Price And Quantity
- 1 Piece
- 120000.0 INR/Piece
3Tr Air Cooled chiller Product Specifications
- Three Phase
- Hermetically Sealed Scroll Type
- Industrial, Commercial, Process Cooling
- Brass
- Branded, Heavy Duty
- 415 V Volt (v)
- 3 Ton (10.5 kW)
- Copper tube with Aluminium fins
- Air Cooled
- Air Cooled Chiller
- 0.75 m3/hr
- 2800 CFM approx ft3/min (CFM)
- New
- 950 mm x 650 mm x 1100 mm Meter (m)
- Low Noise Operation (<72 dB) db
- 1 HP Water Pump Motor
- Other
- Digital Controller
- Overload, Phase Failure, High/Low Pressure Switch
- 7C 1C
- Floor Mounted
- R-407C/R-410A
- Axial Fan
- Stainless Steel
- Thermostatic Expansion Valve
- 5C to 45C
3Tr Air Cooled chiller Trade Information
- 10 Piece Per Month
- 30 Days
Product Description
An air-cooled water chiller is a refrigeration system that removes heat from industrial or commercial processes and transfers it into the surrounding ambient air. It works by circulating chilled water or a water-glycol mixture to absorb heat, then expelling that heat outdoors using fans and condenser coils. [1, 2, 3, 4]Precision Engineered for Robust Cooling
The 3Tr Air Cooled Chiller seamlessly integrates a thermostatic expansion valve, digital temperature control, and a high-performance axial fan for reliable cooling. Designed for environments with ambient temperatures ranging between 5C and 45C, it maintains chilled water output at 7C, supporting a variety of industrial and commercial applications. Its stainless steel water tank and copper tube-aluminum fin coil ensure lasting durability.
Dependable and Efficient Operation
Equipped with a hermetically sealed scroll compressor and a branded 1 HP water pump motor, this chiller prioritizes energy efficiency and longevity. The unit utilizes heavy-duty, powder-coated steel construction and brass nozzles for enhanced corrosion resistance. Integrated overload, phase failure, and pressure switches offer advanced protection, while a quiet operation is maintained at below 72 dB.
FAQ's of 3Tr Air Cooled chiller:
Q: How does the 3Tr Air Cooled Chiller manage temperature control for process cooling?
A: The chiller uses a digital controller in combination with a thermostatic expansion valve to achieve and maintain a precise chilled water outlet temperature of 7C (1C). This setup ensures consistent cooling suitable for sensitive industrial and commercial processes.Q: What are the main installation requirements for this air cooled chiller?
A: Designed as a floor-mounted unit, the chiller requires a stable three-phase 415V power supply and placement in a well-ventilated area. Its dimensions (950 mm x 650 mm x 1100 mm) should be considered to ensure adequate space for airflow and maintenance access.Q: When is it ideal to use the 3Tr Air Cooled Chiller?
A: This chiller is optimized for industrial, commercial, and process cooling, especially where consistent water temperatures and reliable operation are critical. It performs effectively within a broad ambient temperature range of 5C to 45C.Q: Where can this chiller be utilized for maximum benefit?
A: It is best suited for factories, process industries, server rooms, laboratories, and commercial facilities requiring efficient localized chilling with minimal noise and robust protection features.Q: What advantages does the use of R-407C or R-410A refrigerant offer?
A: Both R-407C and R-410A are environmentally friendlier refrigerants with excellent thermodynamic properties, ensuring effective, energy-efficient cooling and compliance with regulations.Q: How do protection devices enhance the longevity of the chiller?
A: Integrated overload, phase failure, and high/low pressure switches safeguard the equipment by preventing operational faults and protecting against electrical or refrigerant anomalies-thus prolonging the lifespan of internal components.Tell us about your requirement
